2022 China New Design Lithium Ion Battery Charging - Lifepo4 battery 51.2V 100Ah 5KW module energy storage system battery – Ironhorse Detail:
Each step have QC engineer following :
|
Working voltage |
Rated voltage |
51.2V |
|||
|
Voltage range |
44V —-56.8V |
||||
|
capacity（Ah） |
100Ah |
||||
|
energy |
|
||||
|
5120Wh （100% DOD @ 0.2C rate） |
|||||
|
Temperature range |
Discharge: - 10°C — 45°C Charge: 0°C — 45°C |
||||
|
Continuous charging current（A） |
20A |
||||
|
Max Continuous Charging current(A) |
100A |
||||
|
Continuous discharging current（A） |
50A |
||||
|
Max Continuous discharging current（A） |
100A |
||||
|
Peak current（A） |
120A |
≤0.3s |
|||
|
Storage temperature |
<30℃，SOC between 20%-60% |
||||
|
weight（kg） |
About 55kg |
||||
|
output |
DC M6 terminal |
||||
|
Communication type |
Double RS485/CAN optional |
||||
|
Cycle life |
>2000 cycles (@0.2CA 70%DOD) |
||||
|
Protection function |
Over-charge；over-discharge；over-current；short circuit；temperature protection |
||||
|
dimension（handle not include） |
430（L）X430（W）X222（H）mm±2 |
||||
|
Case material |
Metal case |
||||
|
overview |
 |
||||
*** Note: As products are constantly updated, please contact us for latest specifications. ***

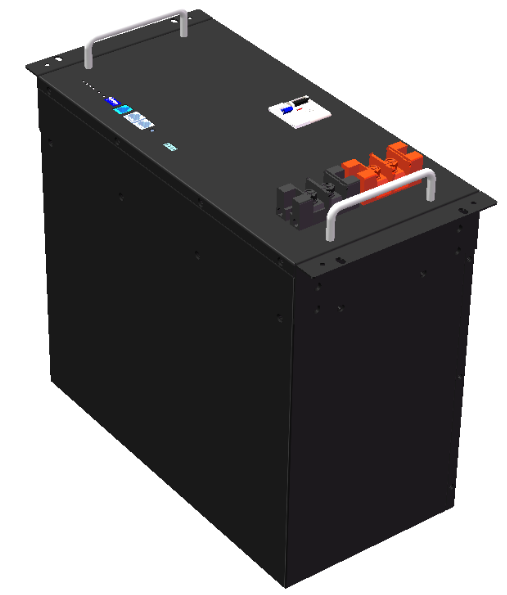

Product detail pictures:
